Overview

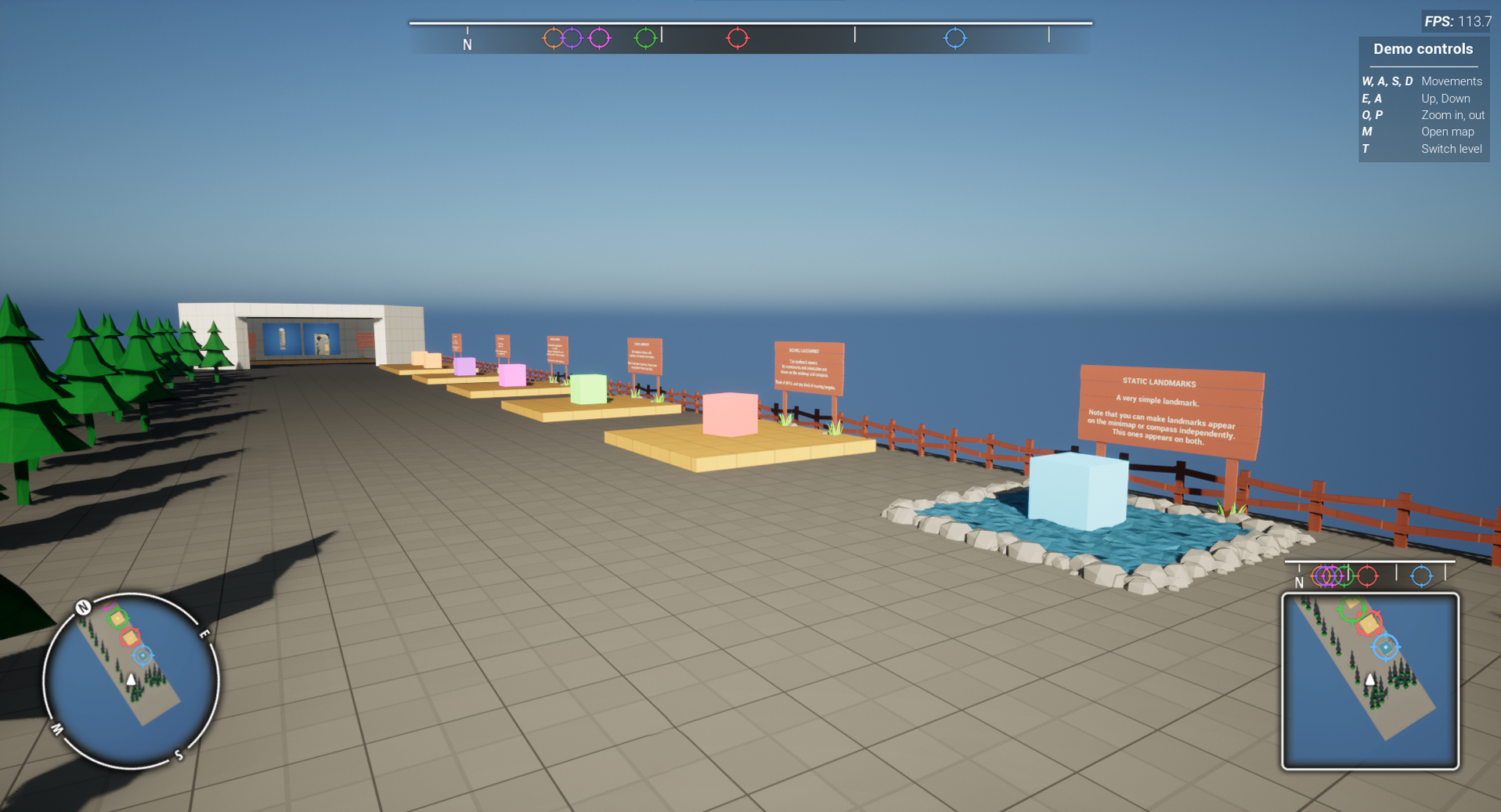

Landmark Navigation is an Unreal Engine plugin that aims at bringing you a very simple and easy way to implement a map, compass and waypoint system in your game. You can consider it as one of the first brick to build upon your games as it includes several pre-built widget that are ready to use and fully customisable.


Features

  • Minimap: A customisable widget to render landmarks on a circular or square minimap.
  • Compass: A customisable widget that renders landmarks on an horizontal axis.
  • Waypoint: A pre-build widget that renders landmarks on-screen in 2D space.
  • BigMap: A pre-built widget that renders the entire map and all its landmarks.
  • MapTool: An editor tool to help you create map textures that are ready to use with the minimap.
  • LandmarkNavigationSubsystem: The brains of it all, handles all landmarks in the level and optimises them based on their distance to the player.

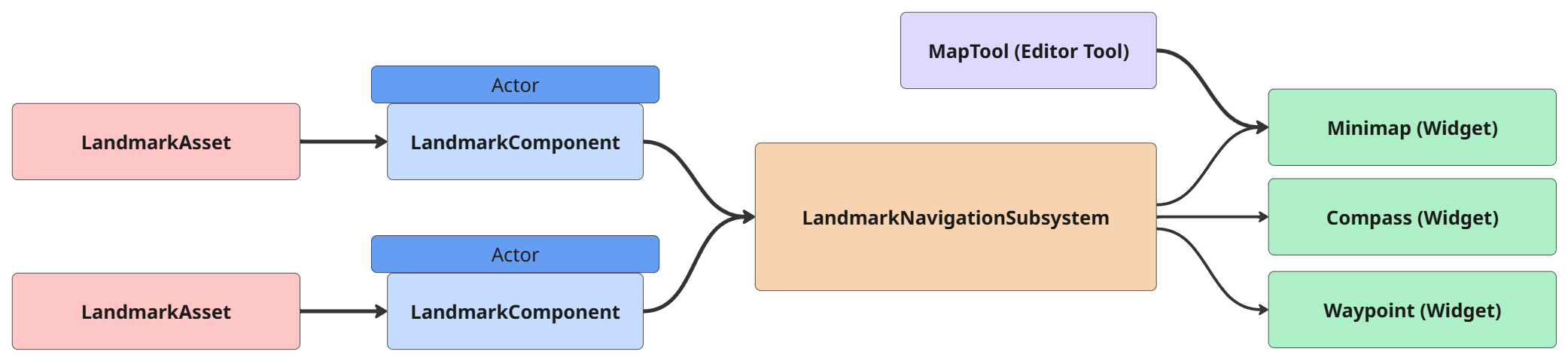

Technical Overview


  • LandmarkAssets define a single landmark, its appearance and its behaviour.
  • LandmarkComponents are assigned LandmarkAssets, a get registered to the LandmarkNavigationSubsystem.
  • The LandmarkNavigationSubsystem handles all landmarks and prepares the relevant data for the various systems that needs it.
  • The Minimap, Compass and Waypoint widgets retrieve this data from the subsystem and display their relevant landmarks on the HUD.
  • The MapTool will aid in generating map textures to use on the minimap widget.

Have a look at the Getting Started section for instructions on how to setup the plugin.
