Landmark Component
A ULandmarkComponent is an ActorComponet that enables a landmark to exist and appear within the LandmarkNavigation systems (minimap, compass etc…). In order to create a landmark you will need to add this component to an actor and assign it a ULandmarkAsset. Then if bAutoRegisterLandmark=true (or if you register it manually via RegisterLandmark()), this landmark will be available to all LandmarkNavigation’s systems (minimap, compass etc…).
Usage:
- Attach this component to any actor that should appear on the minimap, compass etc…
- Assign a ULandmarkAsset to this component.
- Set bAutoRegisterLandmark to true OR manually register it via RegisterLandmark().
- Use the OnLandmarkReached or OnLandmarkLeft delegates to trigger gameplay events.

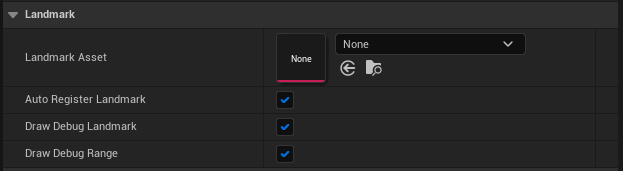

Properties
| Property Name | Description |
|---|---|
| Landmark Asset | The ULandmarkAsset this component should be displayed as. |
| Auto Register Landmark | If true, this component will automatically register itself on BeginPlay. Otherwise, it needs to be manually registered via RegisterLandmark() function. |
| DrawDebugLandmark | If true, will show the landmark’s icon and range in the viewport. (Editor Only, disabled in builds). |
| DrawDebugRange | If true, will show the landmark’s range in the viewport. (Editor Only, disabled in builds). |
Functions
| Function Name | Description |
|---|---|
| RegisterLandmark | Register/Enable this landmark. Allowing it to be ticked and seen by all LandmarkNavigation systems (ie: minimap, compass etc…). You can revert this with UnregisterLandmark(). |
| UnregisterLandmark | Unregister/Disable this landmark. This stops this landmark from ticking and being displayed. You can revert this with RegisterLandmark(). |
| IsLandmarkRegistered | Returns whether this landmark component is registered to the LandmarkNavigation subsystem. |
| GetLandmarkData | Returns this landmark’s FLandmarkData (most up to date data used by LandmarkNavigation systems). |
Events
| Event Name | Description |
|---|---|
| OnLandmarkReached | This events gets triggered whenever the user enters its ReachedRange. |
| OnLandmarkLeft | This events gets triggered whenever the user exits the range of the landmark. |
